2020 Mercury 6 HP 6MH Outboard Motor,,

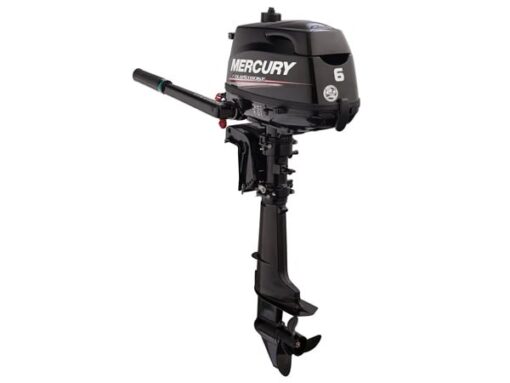

2020 Mercury 6 HP 6MH Outboard Motor
The 2020 Mercury 6 HP Outboard Model # 6MH, at just 57 Lbs with an integrated gas tank, is truly a portable outboard. This single cylinder outboard features an easy manual starting with a front mounted gear shift lever as well as tiller steering. The 6MH is a 15 inch short shaft model. Standard feature on this 6 HP Mercury outboard engine is an external tank connection. This portable outboard is perfect for small jon boats, skiffs and as a power source for your sailboat.

Compact and Lightweight
Digital CD Ignition with Spark Advance
High Grade Marine Alloy Construction
Stainless Steel Water Pump Housing
Zinc Coated Water Passages
Rated for Saltwater Use
Sacrificial Zinc Anodes
Forward-Neutral-Reverse Gear Shift
Adjustable Steering Tension Control
Forward Mounted Gear Shift Selector
Twist-Grip Throttle with Tension Control
Integrated Carry Handle
Thermostat Controlled Water Cooling
Shallow Water Drive; 6 Trim Positions
Quiet Through-Propeller-Hub Exhaust
1.15 Liter (.30 Gallon) Integral Fuel Tank
Start-In-Gear Protection
Low Oil Pressure Warning Indicator
ESG Over-Rev Protection
Safety Lanyard Stop Switch
Owner’s Manual
Mercury Marine 3-Year Warranty

MODEL
6MH
MODEL YEAR
2020
SKU
6MH-20
WEIGHT
57.0 lb
MANUFACTURER
Mercury
COUNTRY OF MANUFACTURE
Japan
HORSEPOWER
6hp
SHAFT LENGTH
15″ (Short)
STEERING
Tiller
STARTING
Manual
TRIM & TILT
Manual
FUEL DELIVERY
Carburetor
FUEL TANK
Internal
CYLINDER(S)
1
DISPLACEMENT
7.5/123
BORE AND STROKE
2.32 x 1.77
FULL THROTTLE RPM RANGE
5000-6000
IGNITION SYSTEM
CDI w/electric spark advance
INDUCTION SCAVENGING
OHV
VALVES PER CYLINDER
2
FUEL TYPE
CDI w/electric spark advance
FUEL TANK / FUEL LINE
0.3 US Gallon (1.15 liter)
OIL TYPE
Mercury 4-Stroke Outboard Oil
OIL CAPACITY
450 mL / 15 oz
LUBRICATION
Wet sump
ALTERNATOR
Optional 12V 50W 4A (installation required)
COOLING SYSTEM
Water-cooled w/thermostat
SALTWATER RATED
Yes
GEAR RATIO
2.15:1
GEAR SHIFT
Forward-Neutral-Reverse (forward mounted shift lever)
PROPELLER
7.7″ Diameter X 8.0″ Pitch 3-Blade Aluminum
