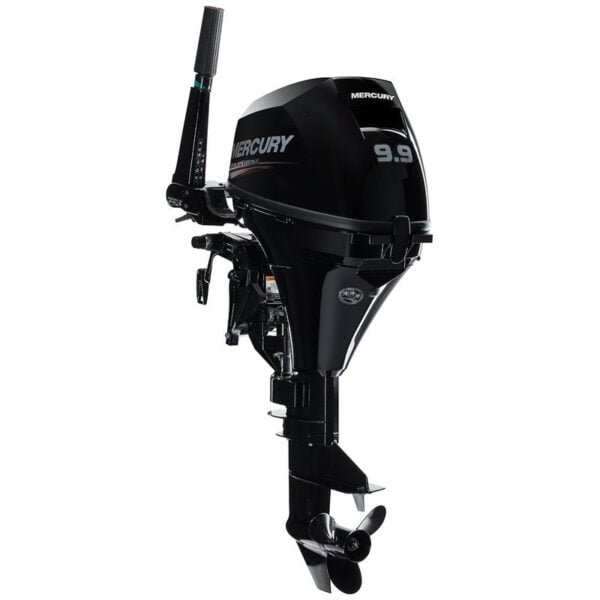

2021 Mercury 9.9 HP ELH Outboard Motor,,

The portable Mercury 9.9hp outboard motor is lightweight, compact, and powerful at 93 lbs. Mercury model #: 9.9ELH comes equipped with an electric start and a 20 inch long shaft, auto ratchet tilt, and multi function tiller control. The 9.9 ELH is a great choice for long shaft jon boats, skiffs, and small pontoons as well as sailboat power. The Mercury 9.9 HP outboard engine is a twin-cylinder four-stroke that delivers smooth, quiet, fuel efficient operation with the reliability that Mercury is known for. Mercury Marine provides a 3 year factory warranty that begins the date of purchase.
Additional information
Horsepower
9.9 HP
Shaft Length
20″ (Long)
Starter Type
Electric
Tilt & Trim
Manual

FEATURES
Compact and Lightweight
Electric Start + 12V 76W 6A Alternator
Thru-Cowl Backup Manual Start
Digital CD Ignition with Spark Advance
High Grade Marine Alloy Construction
Stainless Steel Water Pump Housing
Zinc Coated Water Passages
Rated for Saltwater Use
Sacrificial Zinc Anodes and Trim Tab
Tiller Integrated F-N-R Gear Shifting
Adjustable Steering Tension Control
Twist-Grip Throttle with Tension Control
Thermostat Controlled Water Cooling
Auto Ratchet Trim System (5 positions)
Shallow Water Drive
Quiet Through-Propeller-Hub Exhaust
3.2 Gallon Fuel Tank and Fuel Line
Start-In-Gear Protection
Low Oil Pressure Warning Indicator
ESG Over-Rev Protection
Safety Lanyard Stop Switch
Owner’s Manual
Mercury Marine 3-Year Warranty

SPECS
MODEL
9.9ELH
MODEL YEAR
2021
SKU
9.9ELH-21
WEIGHT
93.0 lb
MANUFACTURER
Mercury
COUNTRY OF MANUFACTURE
Japan
HORSEPOWER
9.9hp
SHAFT LENGTH
20″ (Long)
STEERING
Tiller
STARTING
Electric
TRIM & TILT
Manual
FUEL DELIVERY
Carburetor
FUEL TANK
External
CYLINDER(S)
2
DISPLACEMENT
208 cc (12.8 cubic inches)
BORE AND STROKE
55 x 44 mm (2.16 x 1.73 inches)
FULL THROTTLE RPM RANGE
5000-6000
IGNITION SYSTEM
Digital CD Ignition w/Electronic Spark Advance
INDUCTION SCAVENGING
SOHC
VALVES PER CYLINDER
2
FUEL TYPE
87 Octane (up to 10% ethanol content)
FUEL TANK / FUEL LINE
3.2 Gal. Fuel Tank + Quick Connect Fuel Line
OIL TYPE
SAE 10W-30 (Mercury 4-Stroke Outboard Oil)
OIL CAPACITY
27 fl. Oz. (800 ml)
LUBRICATION
Trochoid Pump
ALTERNATOR
12V 76W 6A (standard on electric start models)
COOLING SYSTEM
Water-Cooled, Thermostatically Controlled
SALTWATER RATED
Yes
GEAR RATIO
2.08:1
GEAR SHIFT
Forward-Neutral-Reverse (shift in tiller handle)
PROPELLER
8.5″ Diameter X 8.0″ Pitch 3-Blade Aluminum

IN THE BOX
Fuel Tank (3.2 gallon)
Quick Connect Fuel Line
Mercury 3-Year Warranty
Aluminum Propeller
Mercury 4-Stroke Oil
Owner’s Manual & Tool Kit
